AC Explosion Proof Plug And Socket


Explosive gas atmosphere Zone 1 and Zone 2

Combustible dust areas Zone 21 and Zone 22

Explosive gas mixture classification IIA, IIB, IIC

Explosive gas ignition temperature group T1-T6

Current ratings available at 16A, 30A

Mounting type: straight and lean type.

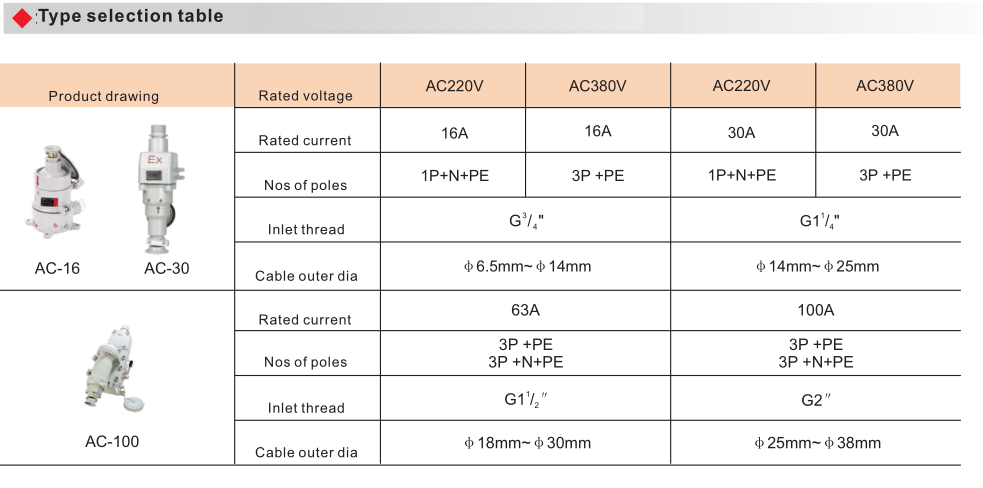

Technician specifications

Ex rating:Exde II CT5 Gb、ExtD A21 IP66 T80℃.

Rated voltage:AC220V/380V(Can be customized as request)

Rated current:16A, 30A

IP grade:IP54, IP65*

Corrosion-proof class:WF1、WF2*

Inlet thread: G3/4”、G11/4”or NPT1.2

Cable diameter: Φ8mm-Φ14mm Φ14mm-Φ25mm

Number of pole: 1P+N+PE 3P+PE

Executive standard:

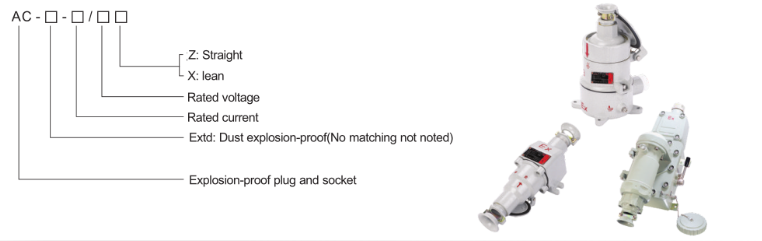

Model implicatio

AC Explosion Proof Plug And Socket


Pieces suitable for explosive gas environment 1 zone and 2 zone, Pieces suitable for IIA, IIB, IIC explossive gas environment,

This product in Hazardous:21zone, 22zone,

Should apply to the temperature gruop for T1~T6 environment;

This product application moves between the power plant and theelectric cable and the load in the open country. Electrical connection. Widely uses in profession and so onpetroleum, chemical industry nation al defense, electric power and transportation.

Current ratings available at 16A, 32A

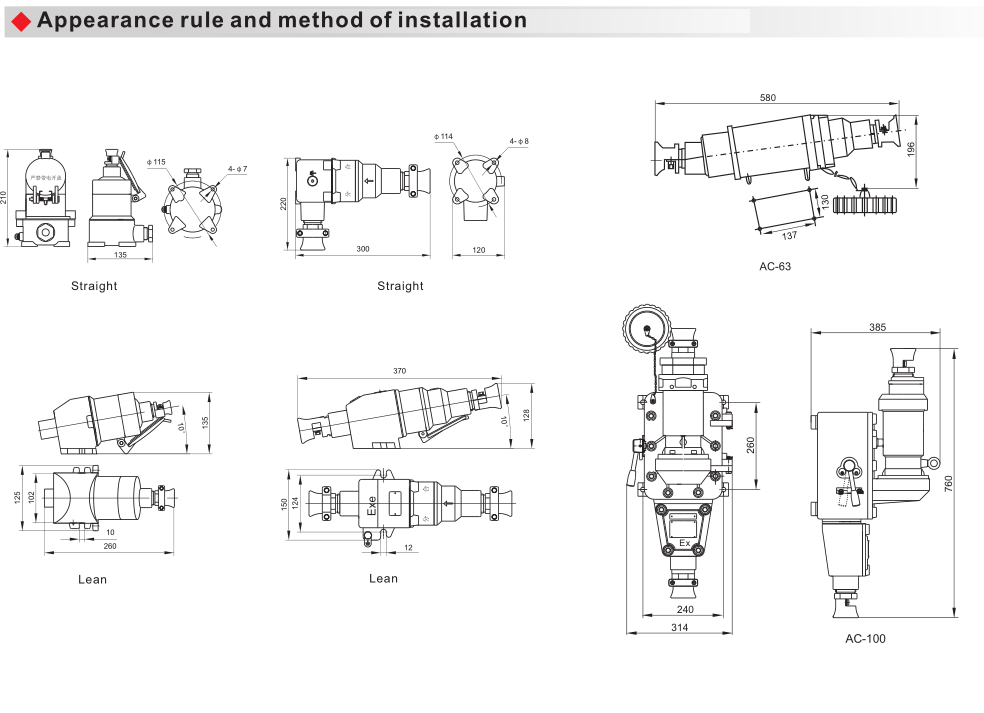

Mounting type: straight and lean type.


Enclosure is die casted of aluminum alloy with high voltage electrostatic powder coated surface after shot blasted.

Built in interlock mechanism, plug can be draw out only after switch is cut off inside socket.

Compact structure and easy to maintain. Steel pipe and cable wiring.

Techniccl parameter

◇Meet a criterion: GB3836.1、GB3836.2、GB3836.3、GB12476.1、

GB12476.5、IEC60079-0、IEC60079-1、IEC60079-7、 IEC61241-0、EN60079-0、EN60079-1、EN60079-7、 EN61241-0、EN61241-1

◇Explosion-proof mark: Exde II CT5 Gb、ExtD A21 IP66 T80℃.

◇Rated voltage: AC220/380V  Can be customized as request

◇Rated current: 16A、30A

◇protection grade: IP54、IP65*

◇Explosion-proof grade: WF1、WF2*

◇Inlet thread: G3/4”、G11/4”或NPT1.2

◇Cable diameter: Φ8mm-Φ14mm  Φ14mm-Φ25mm

◇Number of pole: 1P+N+PE 3P+PE

AC Explosion Proof Plug And SocketAC Explosion Proof Plug And Socket
