SW-10 Explosion Proof Lighting Switch

Applications:

Explosive gas atmosphere Zone 1 and Zone 2

Combustible dust areas Zone 21 and Zone 22

Explosive gas mixture classification IIA, IIB,IIC

Explosive gas ignition temperature group T1-T6

Technician specifications

Ex rating:Exde II BT6 Gb、ExtD A21 IP66 T80℃

Rated voltage: AC220V

Rated current: 10A

IP grade: IP65,IP66

Corrosion-proof class:WF1,WF2

Inlet thread: G3/4"

Wiring Outer diameter: φ8mm~φ14mm

Executive standard:

GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5,

IEC60079-0,IEC60079-1,IEC60079-7,IEC61241-0,

EN60079-0,EN60079-1,EN60079-7,EN61241-0,EN61241-1

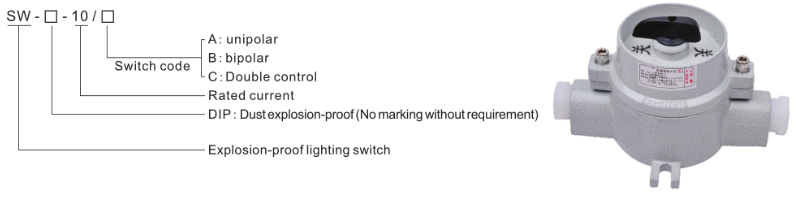

Model implicatio

SW-10 Explosion Proof Lighting Switch

Application

Designed for Explosive atmosphere Zone 1 and Zone 2

Designed for Groups IIA,IIB,IIC

Designed for Combustible dust Zone21, Zone22

Designed for Temperature classes T1~T6

Designed for sites with explosive atmosphere such as petroleum exploitation, refinery, chemistry, medicine, textile, printing, military and military etc. Used for switching for lighting circuit.

Techniccl parameters

Meet a criterion: GB3836.1    GB3836.2    GB3836.3    GB12476.1

GB12476.5    IEC60079-0    IEC60079-1    IEC60079-7

IEC61241-0    EN60079-0    EN60079-1    EN60079-7

EN61241-0    EN61241-1

Explosion-proof mark: Exde II BT6 Gb   ExtD A21 IP66 T80

Rated voltage: Ac220

Rated current: 10A

protection grade: IP65   IP66* Explosion-proof grade: WF1   WF2

Inlet thread: G3/4”

Cable diameter: Φ8mm-Φ14mm

Feature

Enclosure is die casted of aluminum alloy with high voltage electrostatic powder coated surface aftwer shot blasted.

Built-in combination switch with stable property.

Special designed water resistance and dust resistance gasket. With good water resistance and dust resistance etc. property. Steel conduit and cable wiring.

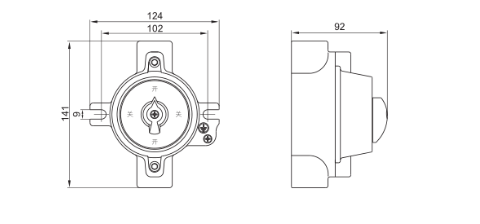

Appearance rule and method of installatio

SW-10 Explosion Proof Lighting Switch
